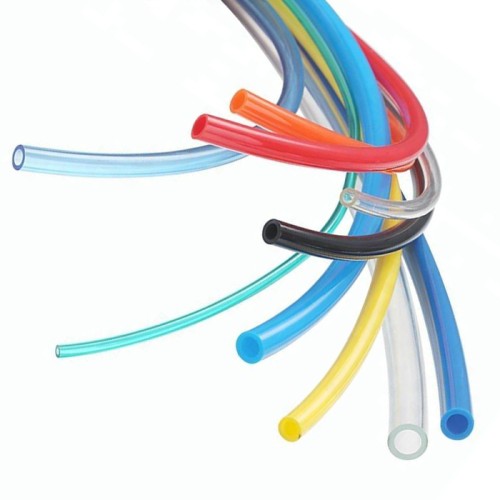

PU Tubes Polyurethane Air Tubing Pneumatic Tubes Air Hoses Air Hosing
- Part Number: PU_Tube
- Availability: In Stock
This product has a minimum quantity of 200
| PU Size | Part No. | O. D.(mm) | I. D.(mm) | Meters/Roll | Temperature Range (°C) | Max. Working Pressure (Mpa) | Minimum Bending Radius (mm) | ||
| 20℃ | 40℃ | 60℃ | |||||||
| Metric Size | PU0212 | 2 | 1.2 | 200 | -20°C~+70°C | Air 0.8 | Air 0.65 | Air 0.50 | 4 |
| PU0425 | 4 | 2.5 | 200 | 10 | |||||
| PU0604 | 6 | 4 | 200 | 15 | |||||
| PU0805 | 8 | 5 | 100 | 20 | |||||
| PU1065 | 10 | 6.5 | 100 | 27 | |||||
| PU1208 | 12 | 8 | 100 | 35 | |||||
| PU1410 | 14 | 10 | 50 | 65 | |||||
| PU1612 | 16 | 12 | 50 | 85 | |||||
| Inch Size | PU1/8"x5/64" | 3.18 | 2 | 200 | 10 | ||||
| PU3/16"x1/8" | 4.76 | 3.18 | 200 | 15 | |||||
| PU1/4"x11/64" | 6.35 | 4.23 | 100 | 23 | |||||
| PU3/8"x1/4" | 9.53 | 6.35 | 100 | 27 | |||||
| PU1/2"x11/32" | 12.7 | 8.46 | 100 | 35 | |||||
Fluid: Air Material: Polyester Polyurethane
Hardness: 95А - 98А Tolerance: ± 0.10mm (O.D. 4~12mm) ; ± 0.15mm (O.D. 14~16mm)
Color: B=Black W=White R=Red BU=Blue Y=Yellow G=Green GR=Grey C=Clear
If you want to buy a PU0604 air tube with 200meters length per roll in Blue.
Order Code: PU0604BU200
Remarks: Other sizes and colors can be customized, please contact us.
