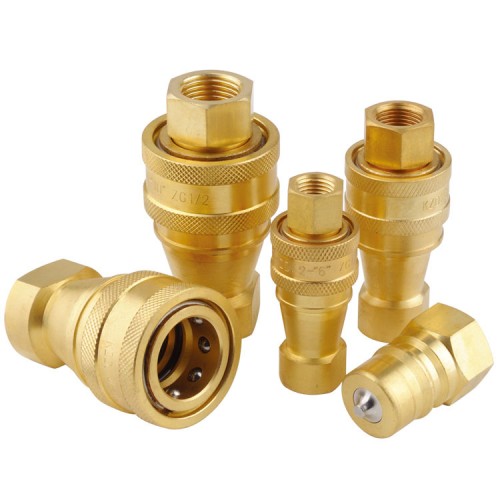

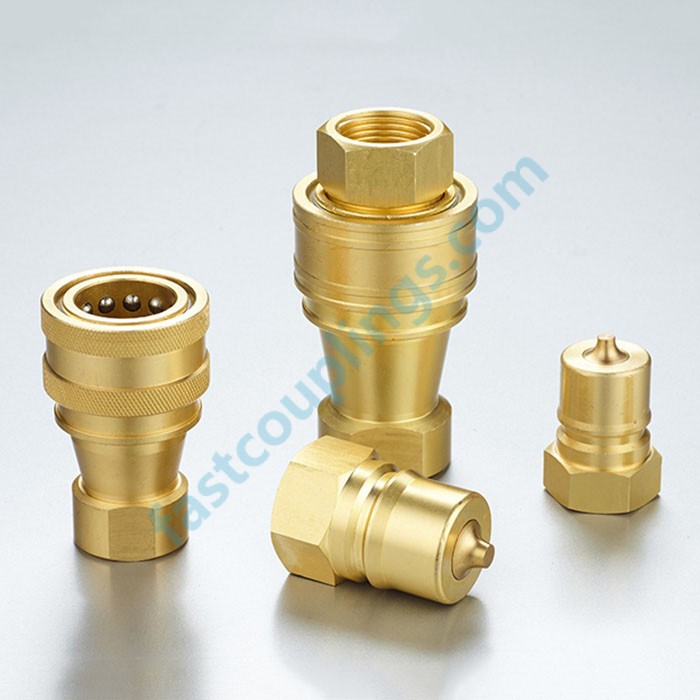

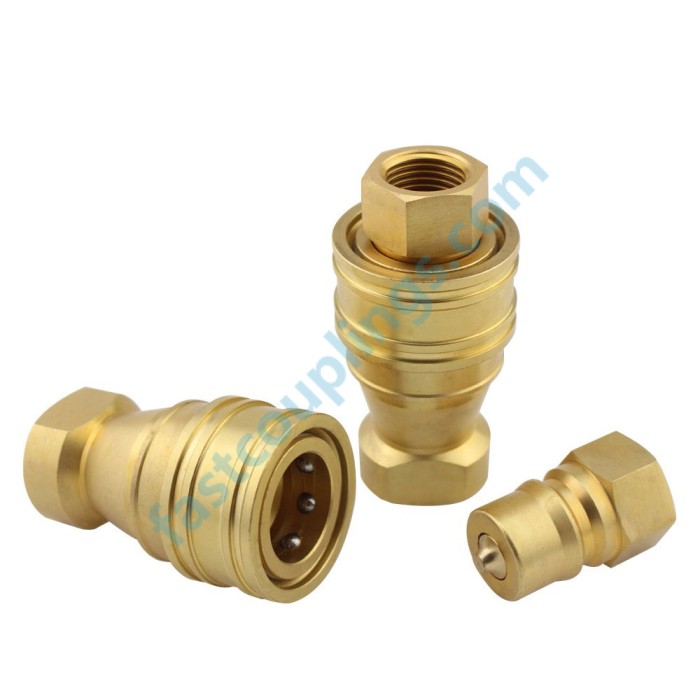

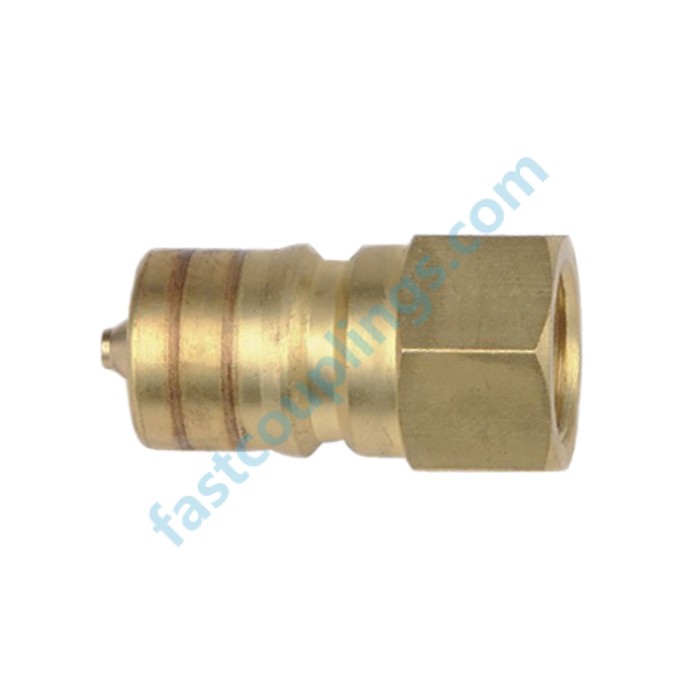

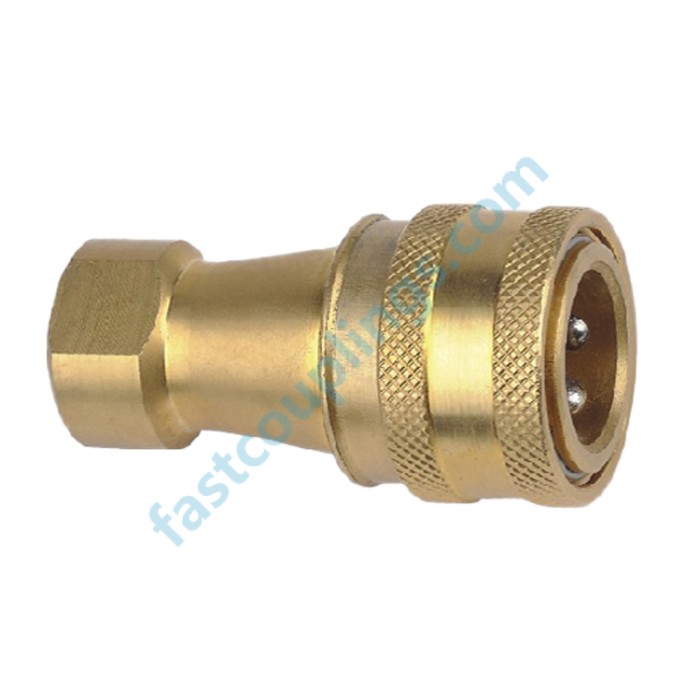

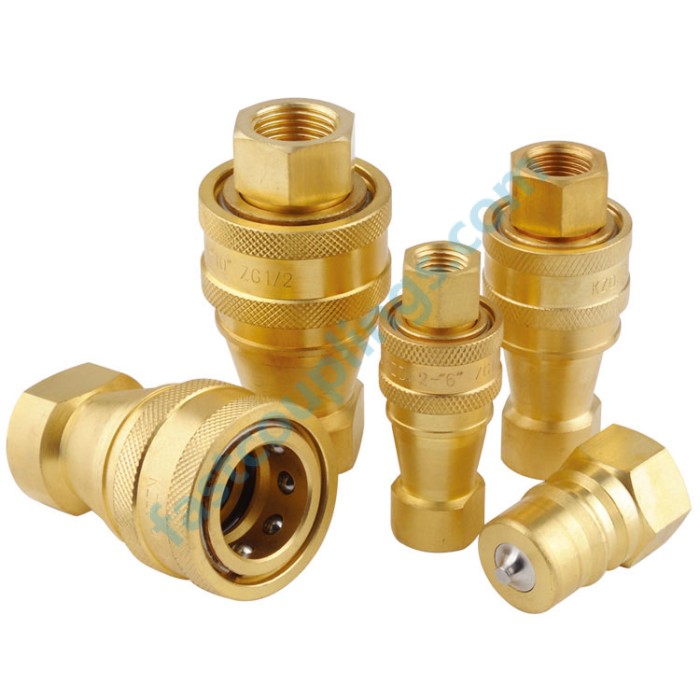

ISO7241-B KZD Brass Hydraulic Quick Release Couplings

ICompatibility:

Parker 60, Faster HNV, Aeroquip FD45, Hansen HK, Foster HX-S, Cejn X75, Safeway S10, Nitto SP,Snap Tite 72, Dixon H, Tomco THK, Stucchi IRB, etc.

Material: Brass

Surface Treatment: Acid Pickling

Working Temperatures: -20 °C to +120 °C

Seal: NBR

Thread: BSPP(G) or NPT female thread, other thread available for customized order

Size: 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Valve Type: Poppet

Markets:
• Construction
• Mobile equipment
• Agriculture

Features:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241-1 series B
• Steel nipple body is hardened for durability

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
