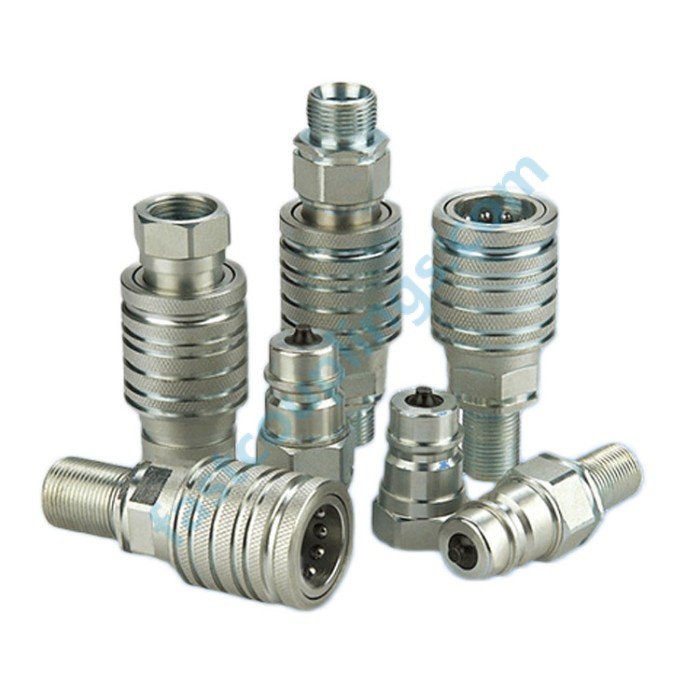

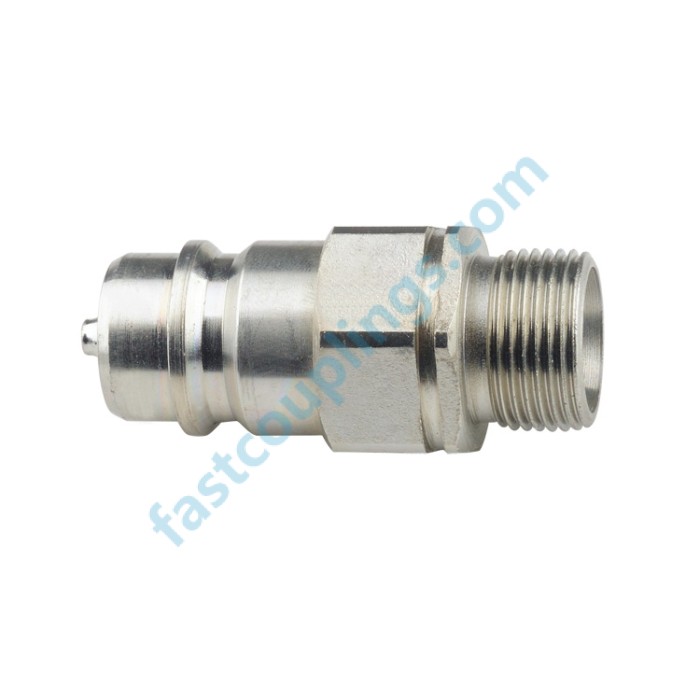

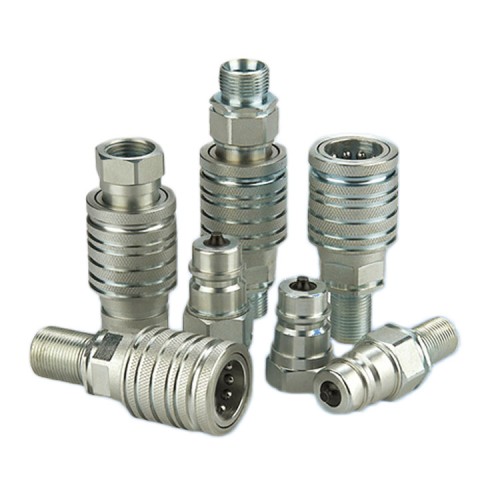

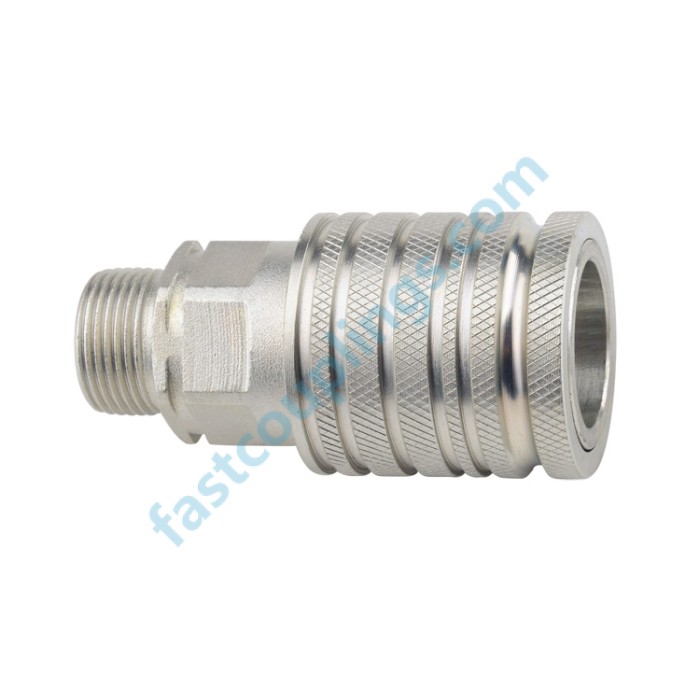

ISO5675 Push And Pull Type Male Thread Hydraulic Quick Couplings Russia Tractor Quick Coupler

  • Part Number: H203-M
  • Availability: In Stock

This product has a minimum quantity of 100

Compatibility:

Parker 4250, FASTER CNV, Faster CPV, Safeway S40, Tomco CD, etc.

Material: Steel

Surface Treatment: White Zinc Plated, Color Zinc Plated or Zinc Nickel Plated

Working Temperatures: -20 °C to +120 °C

Seal: NBR

Thread: Metric, BSPP(G) or NPT female or male thread, other thread available for customized order

Size: L Type: M14*1.5 M16*1.5 M18*1.5 M22*1.5 M26*1.5
         S Type: M18*1.5 M20*1.5 M22*1.5 M24*1.5 M30*2

Valve Type: Poppet

Markets:
• Construction
• Mobile equipment
• Agriculture

Features:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 5675
• Steel nipple body is hardened for durability

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
