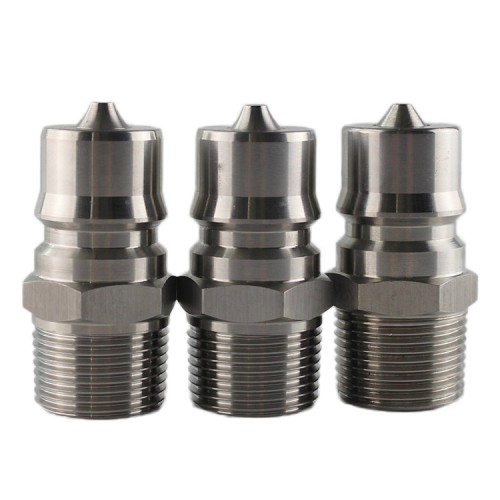

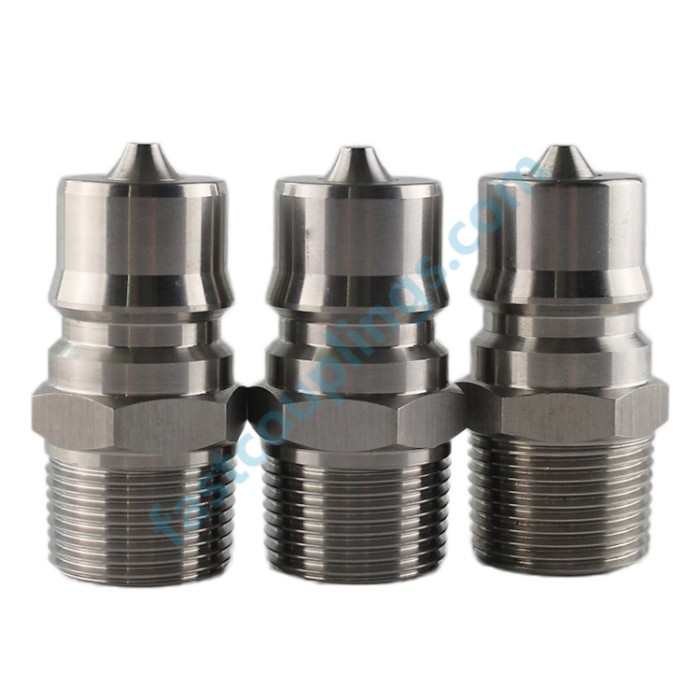

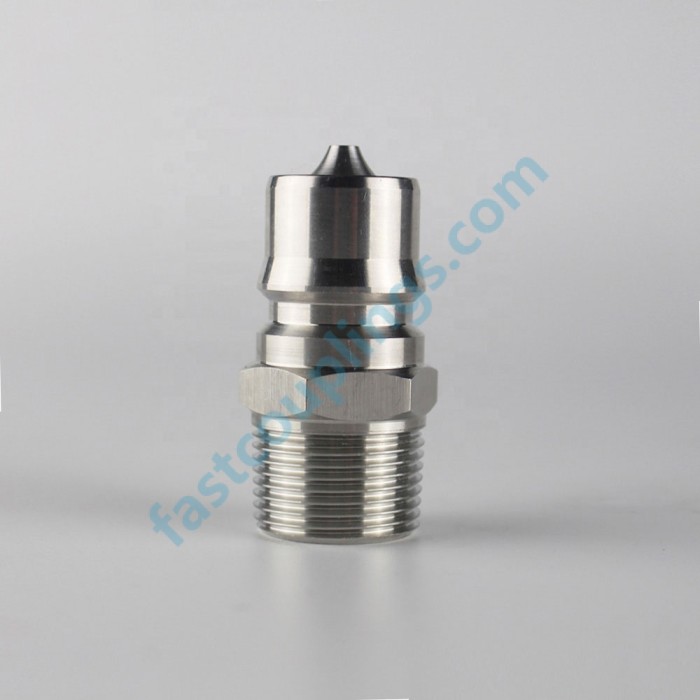

ISO7241-B Stainless Steel Male Thread ISO-B Hydraulic Quick Release Couplings

  • Part Number: H104-SS
  • Availability: In Stock

This product has a minimum quantity of 100

Compatibility:

Parker 60, FASTER HNV, Aeroquip FD45, Hansen HK, Foster HX-S, Cejn X75, Safeway S10, Nitto SP, etc.

Material: Stainless Steel (SUS304 or SUS316)

Surface Treatment: White Zinc Plated, Color Zinc Plated or Zinc Nickel Plated

Working Temperatures: -20 °C to +120 °C

Seal: FKM

Thread: BSPP(G) or NPT female thread, other thread available for customized order

Size: 1/4" 3/8" 1/2" 3/4" 1"

Valve Type: Poppet

Markets:
• Construction
• Mobile equipment
• Agriculture

Features:
• Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241-1 series B
• Steel nipple body is hardened for durability

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
