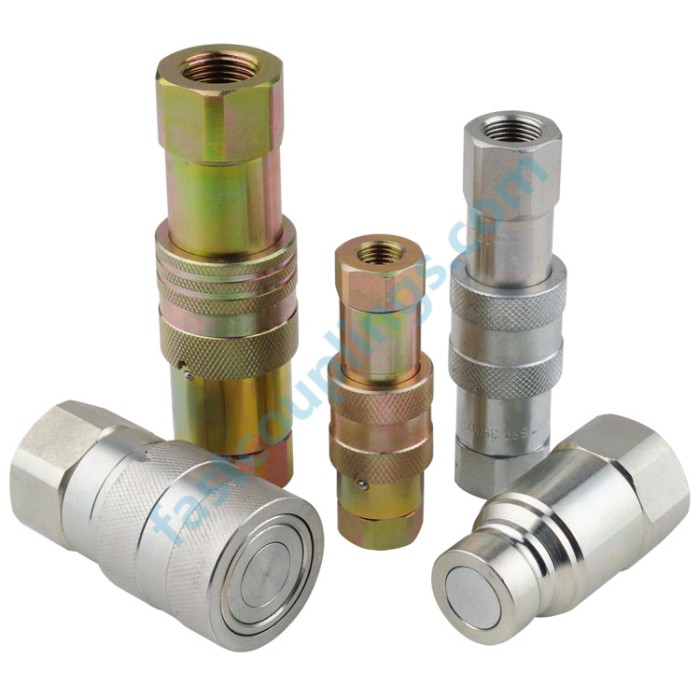

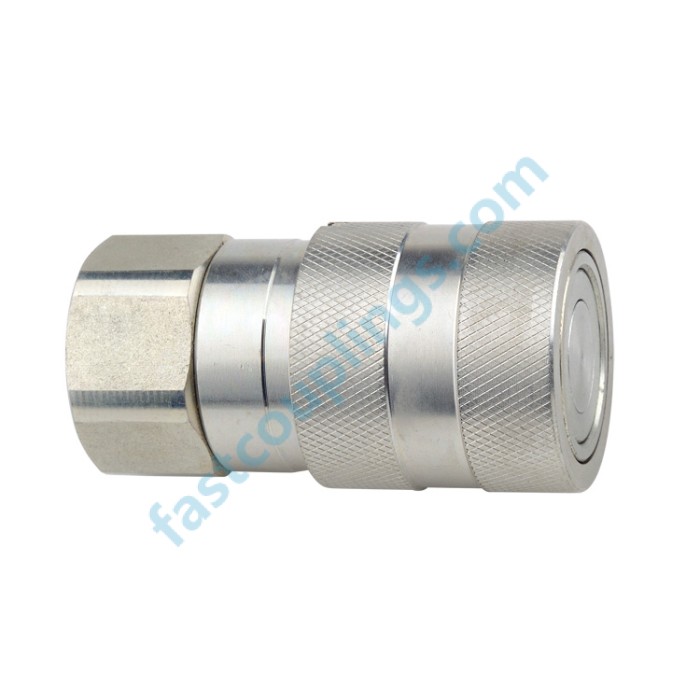

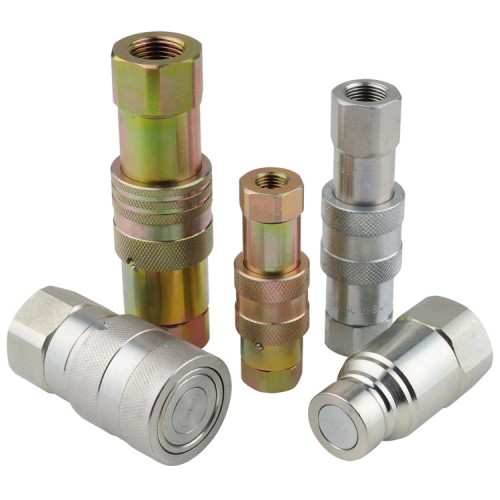

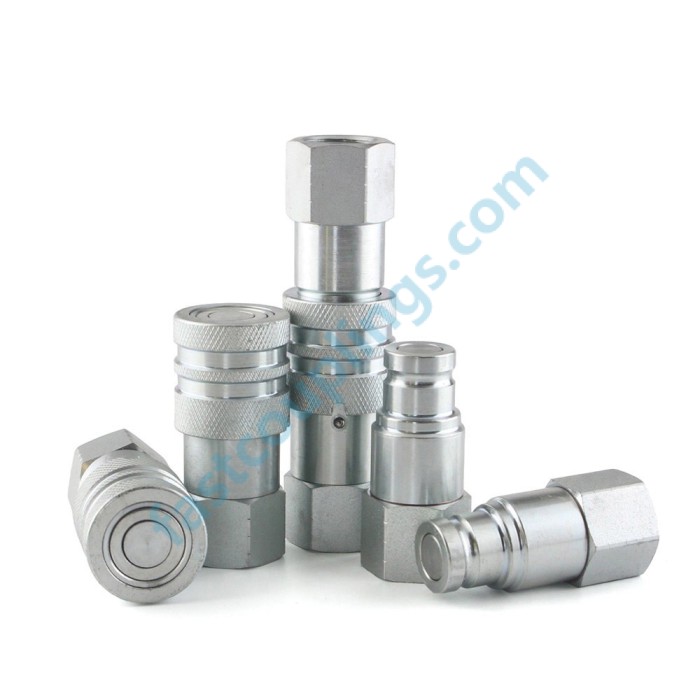

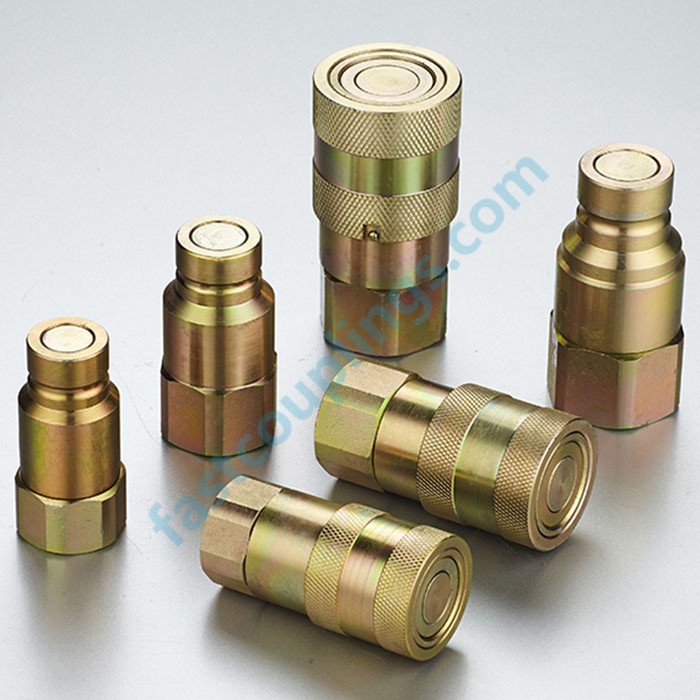

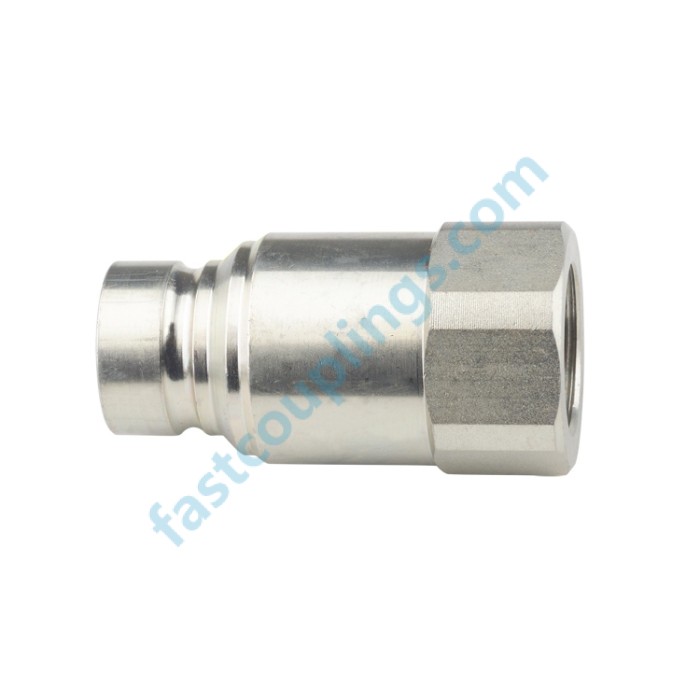

ISO16028 Flat Face Type Hydraulic Quick Release Couplings

  • Product Code: H301
  • Availability: In Stock

This product has a minimum quantity of 100


Parker FEM, Faster 2FFI, Stucchi FIRG/A, Aeroquip FD89, Eaton FD89, Hansen FF, Foster FF (FFI-2FFI), Cejn X62, Safeway FF49, Snap-tite 74, Dixon HT, Tomco FE/FF, etc.

Material: Steel

Surface Treatment: White Zinc Plated, Color Zinc Plated or Zinc Nickel Plated

Working Temperatures: -20 °C to +120 °C

Seal: NBR

Thread: BSPP(G) or NPT female thread, other thread available for customized order

Size: 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Valve Type: Flat Face Valve

• Construction
• Mobile equipment
• Agriculture

• Globally interchangeable with other manufacturer's quick couplings complying to ISO16028
• Steel nipple body is hardened for durability

• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
