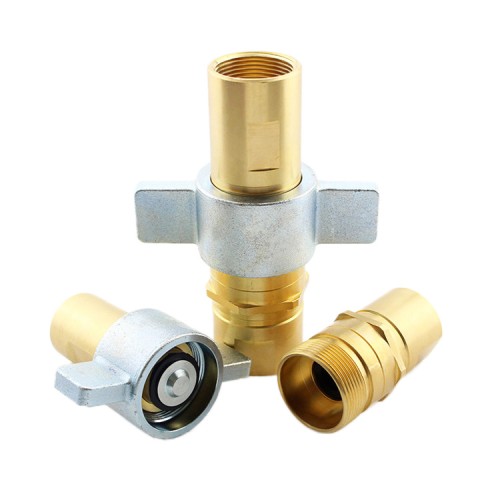

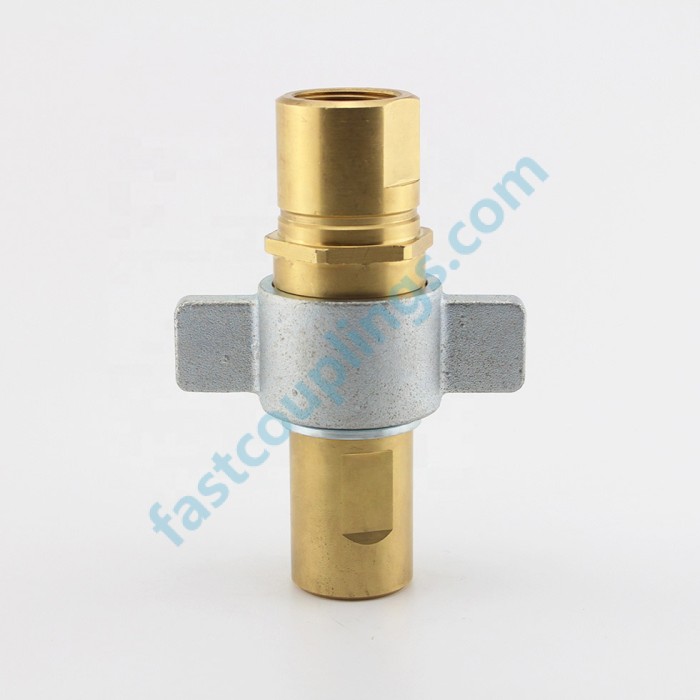

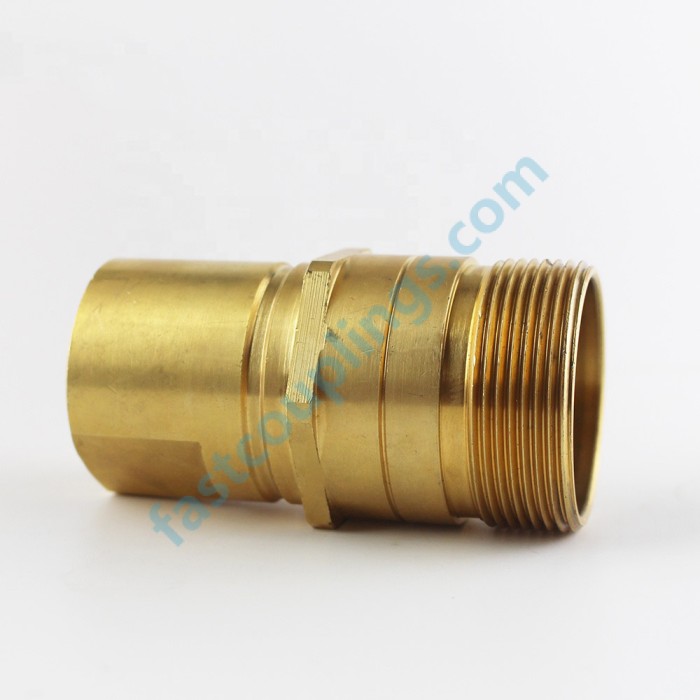

Faster CVE Flat Face Valve Type Wing Nut Screw To Connect Thread Locked Hydraulic Quick Release Coupling

Compatibility:

FASTER FB, PARKER 6100, AEROQUIP FD51(5100),HANSEN 96, SAFEWAY S51,Snap-tite 78, etc.

Material: Brass Body + Rust-proof Cast Iron Sleeve With Wing Nut

Surface Treatment: Acid Pickling

Working Temperatures: -20 °C to +120 °C

Seal: NBR

Thread: BSPP(G) or NPT female thread, other thread available for customized order

Size: 3/4"(3000Psi) 1"(3000Psi) 1-1/4"(3000Psi)

Valve Type: Flat Face Valve

Markets:
• Construction
• Mobile equipment
• Agriculture

Features:
• Globally interchangeable with other manufacturer's high pressure quick couplings
• Steel nipple body is hardened for durability

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
