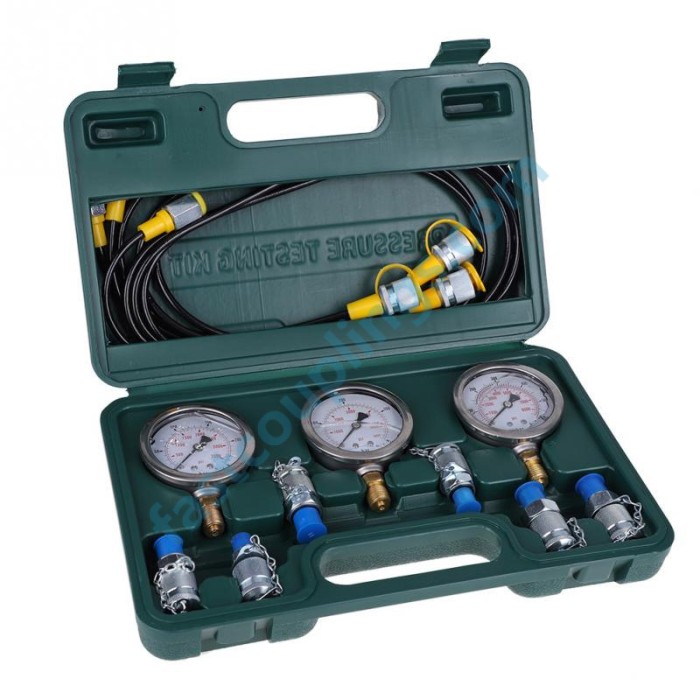

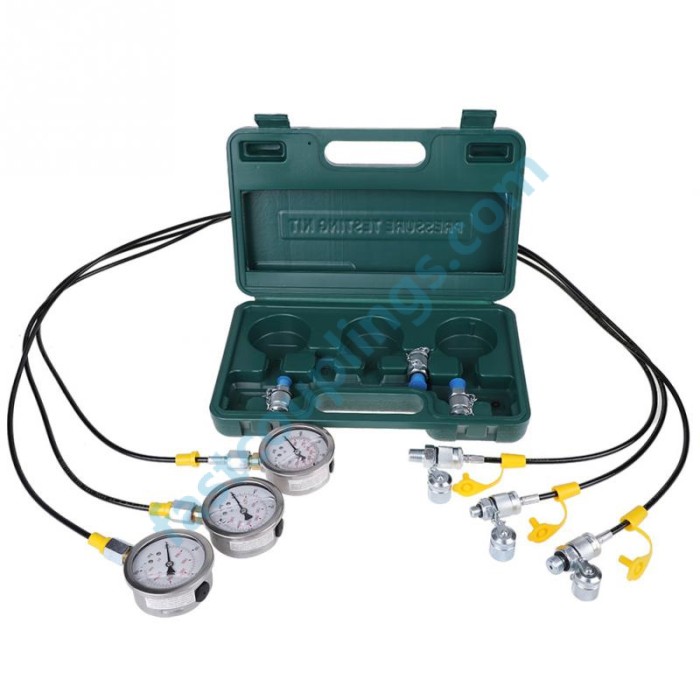

Excavator Hydraulic Pressure Gauge Testing Kit with Quick Connector Coupling and Plastic Box

  • Part Number: TK001
  • Availability: In Stock

Features:

100% brand new and high quality.
This kit is used for construction machinery excavator hydraulic pressure test.
The excavator hydraulic pressure test kit contains test point coupling, pressure gauge, test hose, connector, diverse and complete.
The pressure measuring hose has the characteristics of heat resistance, pressure resistance.
With a box for protection of the test tool and convenient to store.

Specifications:

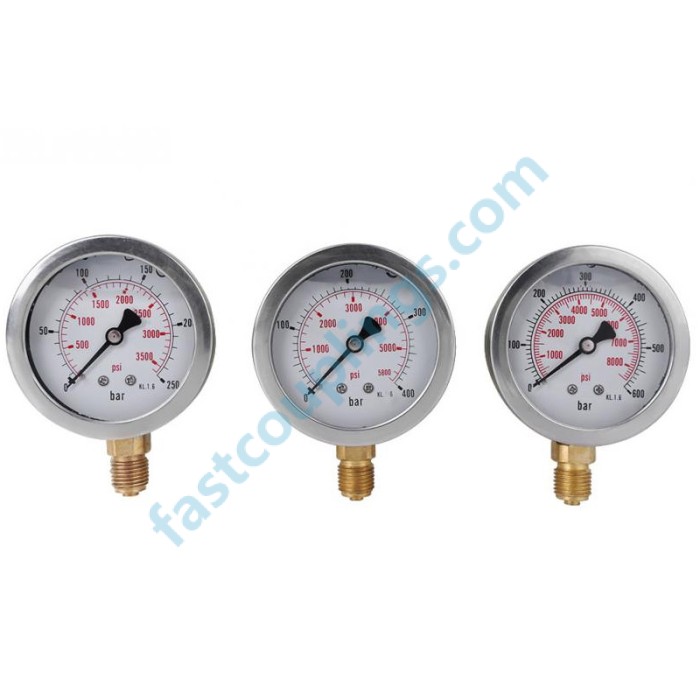

Pressure Gauge: Dia. 63mm~25MPa (250bar/3625psi)

Pressure Gauge: Dia. 63mm~40MPa (400bar/5800psi)

Pressure Gauge: Dia. 63mm~60MPa (600bar/8700psi)

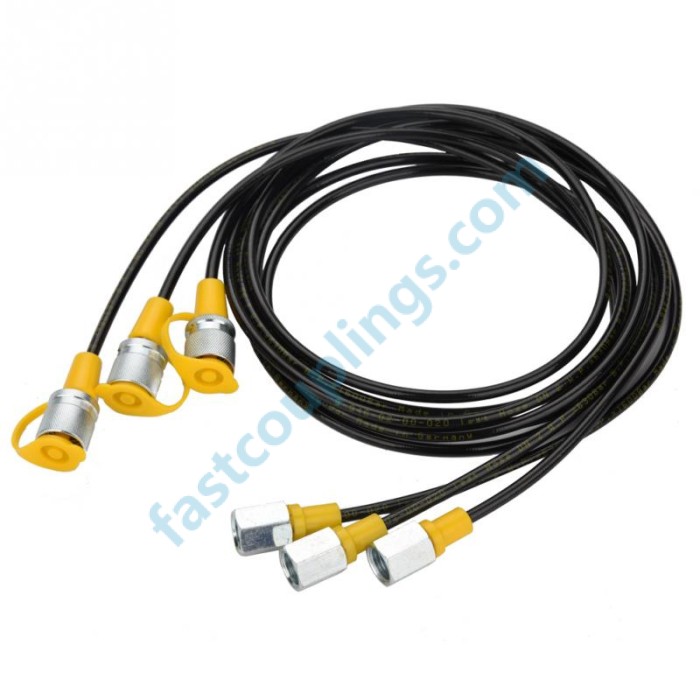

Test Hose Length: 1500mm/59in,Max.63Mpa (3x6mm) with
                             1/4"NPT connect pressure gauge + M16*2MM connect test coupling

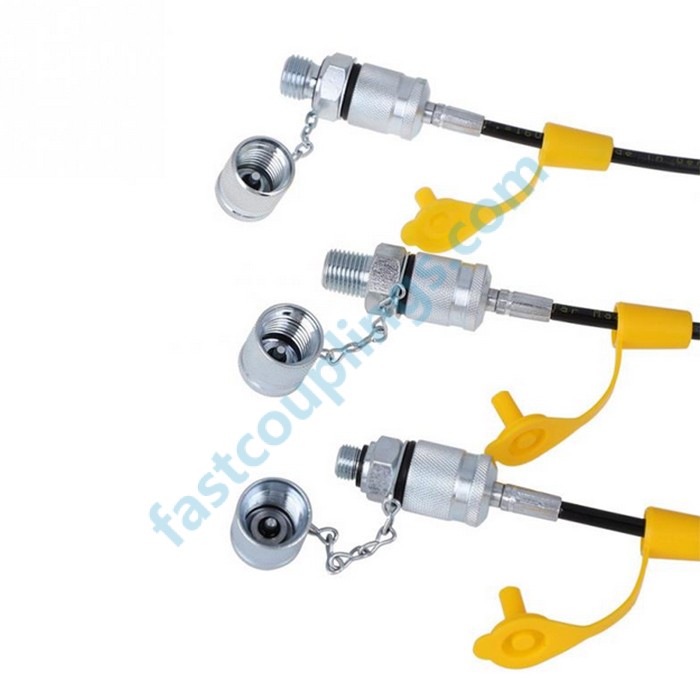

Test Coupling:
  1/8"NPT X  M16X2mm
  1/4"NPT X  M16X2mm
  1/8"BSP X  M16X2mm
  1/4"BSP X  M16X2mm
  7/16 X 20UNF X  M16X2mm
  9/16 X 18UNF X  M16X2mm

Or Other Test Coupling: M14*1.5, G1/4", R1/4",etc.
Operating Temperature: -40°~+100°

Package included:
3 x Pressure Gauges
3 x Test Hoses or 2 x Test Hoses
6 x Test Couplings or 4 Test Couplings
1 x Box
