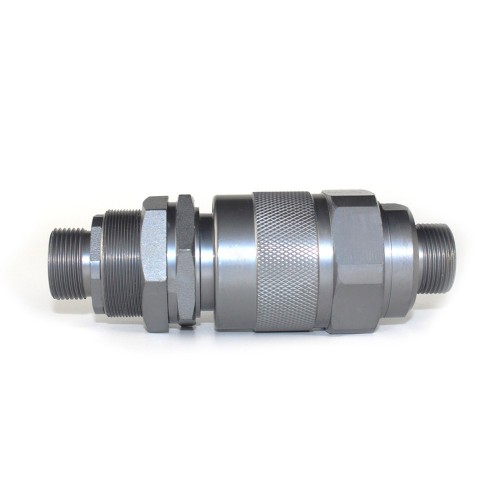

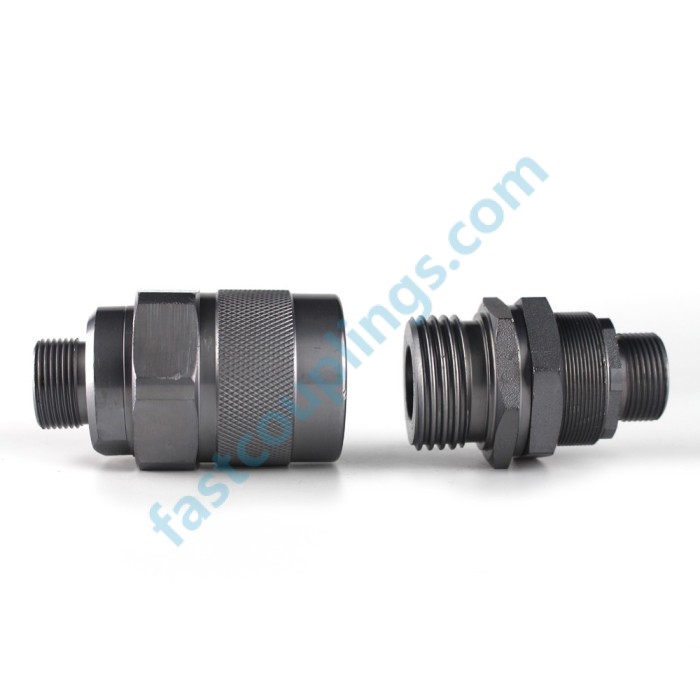

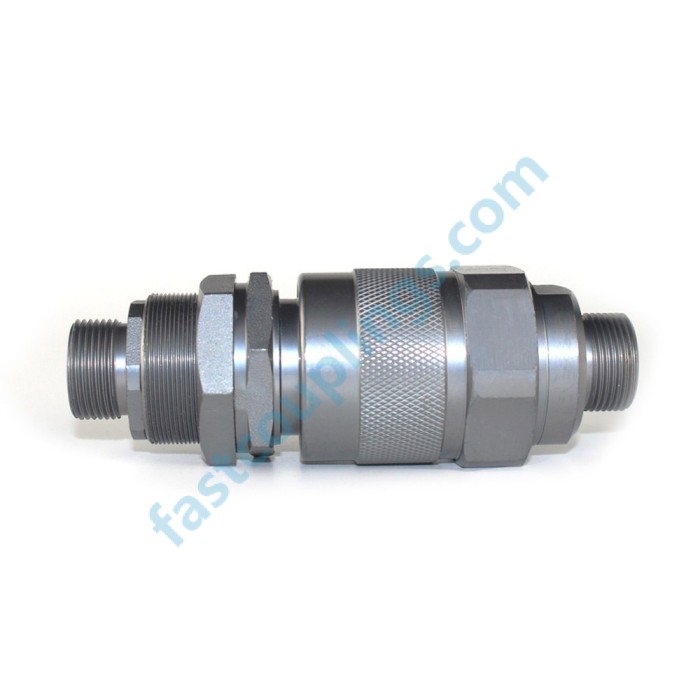

420Bar Flat Face Valve Screw To Connect Thread Locked Hydraulic Quick Release Coupling

  • Part Number: H506
  • Availability: In Stock

This product has a minimum quantity of 100

Compatibility:

STUCCHI RK, VOSWINKEL RK, etc.

Material: Steel

Surface Treatment: White Zinc Plated, Color Zinc Plated or Zinc Nickel Plated

Working Temperatures: -20 °C to +100 °C

Seal: NBR

Thread: Metric male thread, other thread available for customized order

Size: M18*1.5(6090Psi) M26*1.5(6090Psi) M30*2(5076Psi) M45*2(5076Psi) M52*2(5076Psi)

Valve Type: Flat Face Valve

Markets:
• Construction
• Mobile equipment
• Agriculture

Features:
• Globally interchangeable with other manufacturer's high pressure quick couplings
• Steel nipple body is hardened for durability

Applications:
• Hydraulic fluid transfer
• Truck trailer connections
• Mobile applications
• Attachments
